Produktname

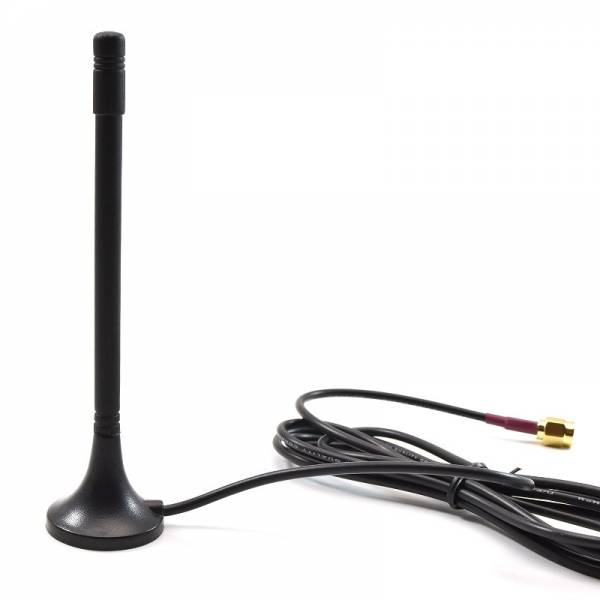

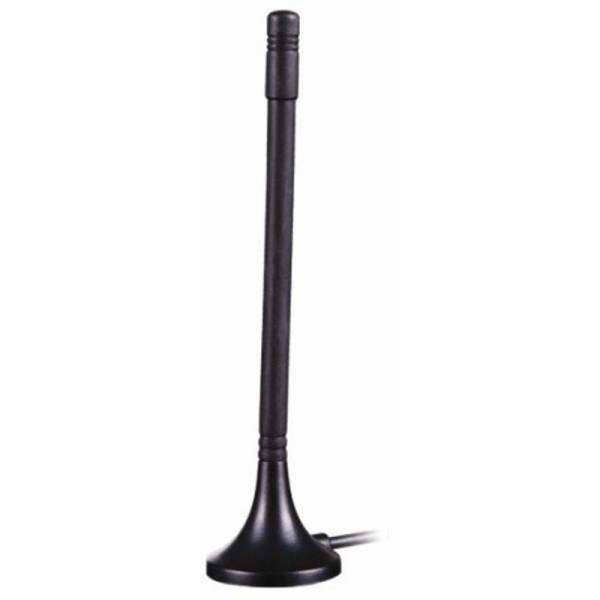

4G LTE Magnetische Innenantenna with 1.5m cable
Garantie
?
24 Monat
Herstellerteilenummer
JCG016L
EAN
0708747434484
4G LTE Magnetische Innenantenna with 1.5m cable
Auf Lager
?
8.25 €
8.25 €
Kompatible Produkte
Spezifikationen
Mobiles Netzwerk
Mobile Network Generation
Antenne
Antennen Design
Omni
Mobile Antenna Frequenzbereich und Verstärkung
0.824 - 0.960 (GHz) 3 (dBi), 1.710 - 2.170 (GHz) 3 (dBi)
Mobilantenne-Gewinn
3 dBi
Polarisation
Linear
Kabellänge
1.5 m
VSWR
< 2.0
Impedanz
50 Ω
Anschlüsse
RF Steckverbinder
(1) SMA Male
Physical Parameters
Maße

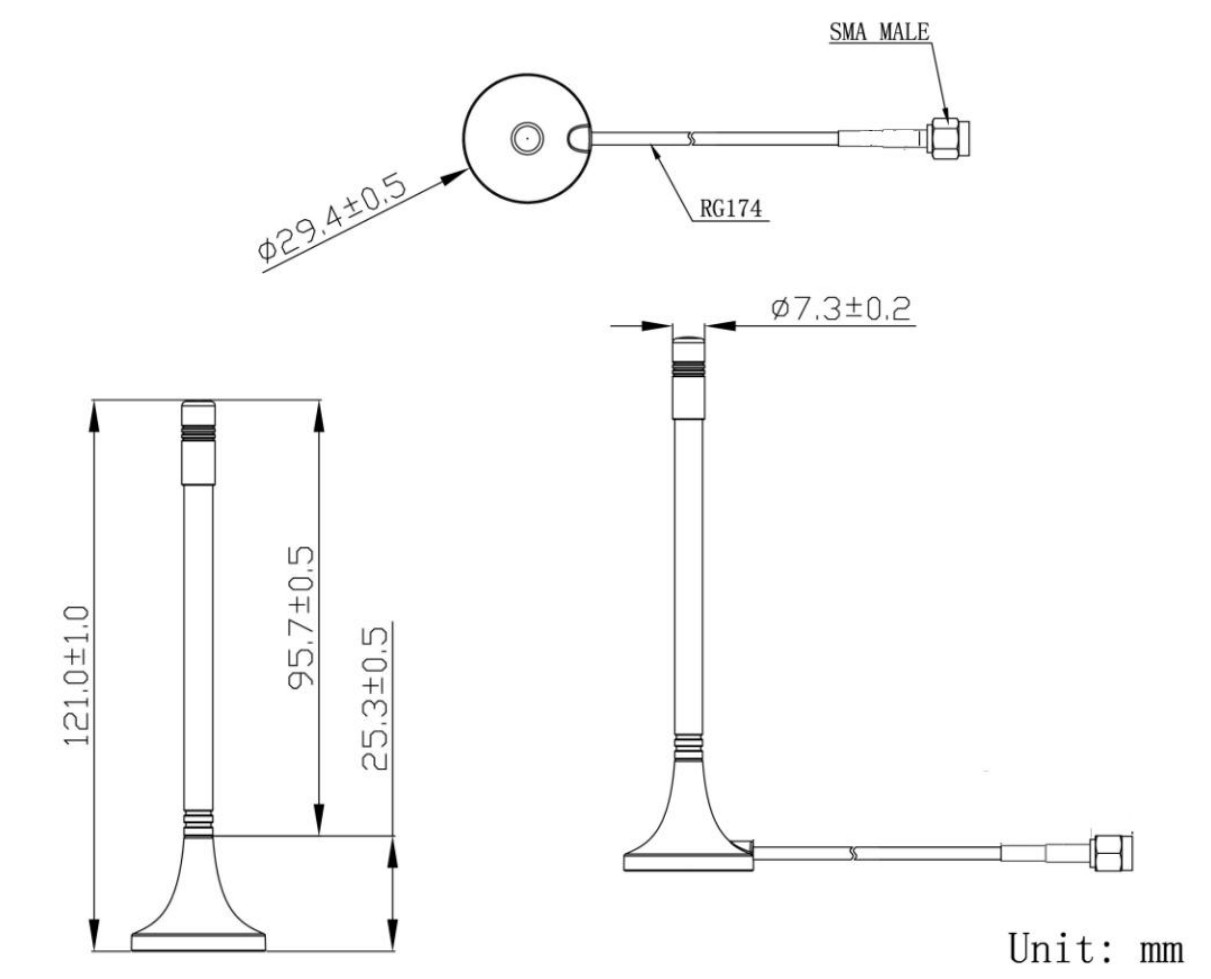

L=121 mm
Betriebstemperatur
-40 °C bis 85 °C
Umwelt
Innen
Montagemethode
