Marke
Herstellerteilenummer
PR1US540
Garantie
?
24 Monat
EAN
4779051840632

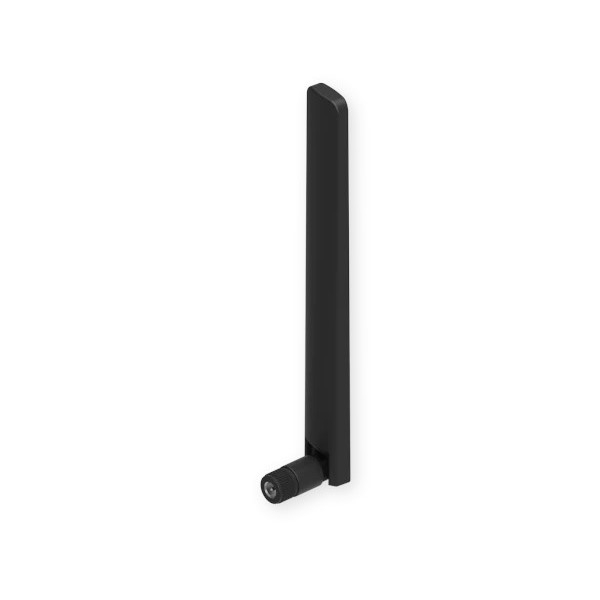

Teltonika 5G Mobile SMA Antenna
Official Teltonika Distributor
Certified Teltonika Engineers
auf Lager
?
4.61 €
4.61 €
Official Teltonika Distributor
Certified Teltonika Engineers
Detallierte Beschreibung
Technische Daten
Kompatible Produkte
Spezifikationen
Mobiles Netzwerk
Mobile Network Generation
Antenne
Antennen Design
Omni
Mobile Antenna Frequenzbereich und Verstärkung
0.617 - 0.960 (GHz) 4.5 (dBi), 1.41 - 1.61 (GHz) 4.5 (dBi), 1.71 - 2.69 (GHz) 4.5 (dBi), 3.3 - 7.125 (GHz) 4.5 (dBi)
Mobilantenne-Gewinn
4.5 dBi, 4.5 dBi, 4.5 dBi, 4.5 dBi
Polarisation
Linear
VSWR
< 3
Impedanz
50 Ω
Anschlüsse
RF Steckverbinder
(1) SMA Male
Physical Parameters
Farbe
Schwarz
Ingress Protection Code
IP33
Gewicht
0.024 kg
Betriebstemperatur
-40 °C bis 85 °C
Umwelt
Innen
Montagemethode
Package Contains
Einheiten
1 Stck
