Produktname
Alfa LoRa/HaLow 868MHz Antenne 5dBi N-Male Stecker
Garantie
?
24 Monat
Herstellerteilenummer
AOA-868-5ACM
EAN
4718050307517
Alfa LoRa/HaLow 868MHz Antenne 5dBi N-Male Stecker
nicht vorrätig
?
10.39 €
10.39 €
Verfügbare Alternativen
Detallierte Beschreibung

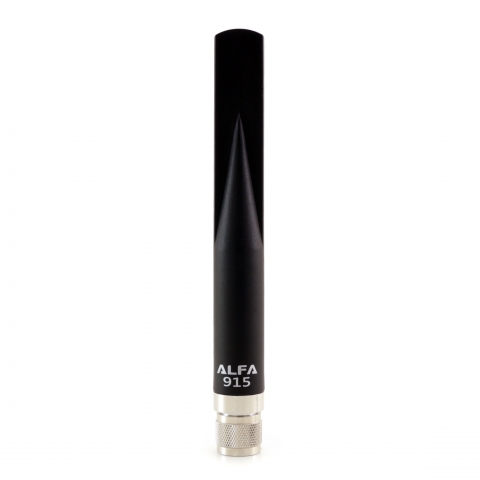

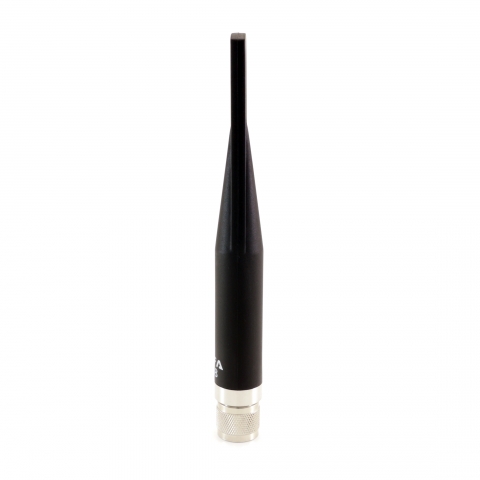

AOA-868-5ACM ist eine omnidirektionale Outdoor-Antenne mit 5 dBI-Verstärkung, die in 863-870 MHz Frequenzbereich arbeitet und entsprechend 868 MHz Lora/Halow/Sigfox-Frequenz abdeckt. Die Antenne ist mit einem männlichen Stecker ausgestattet. Das Gehäuse von AOA-868-5ACM besteht aus dauerhaften, wetterfesten Komponenten und kann in harter Umgebung verwendet werden. Diese kompakte Antenne ist 18 cm lang und einen Durchmesser von 22 mm.
Kompatible Produkte
Spezifikationen
Drahtloses Netzwerk
Standards
802.11ah
Antenne
Antennen Design
Omni
Wireless Antenna Frequenzbereich und Verstärkung
0.863 - 0.870 (GHz) 5 (dBi)
Strahlbreite
360 °
VSWR
< 2.0
Impedanz
50 Ω
Anschlüsse
RF Steckverbinder

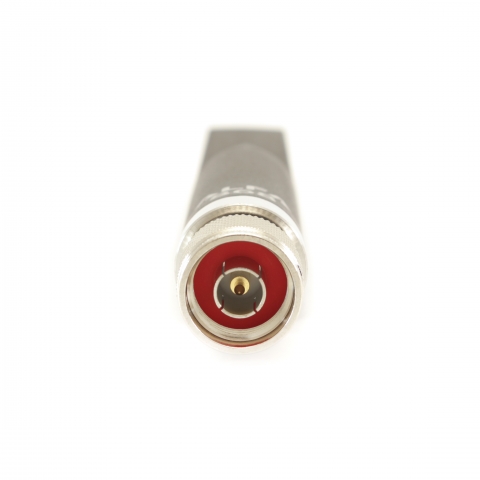

(1) N Male
Physical Parameters
Maße

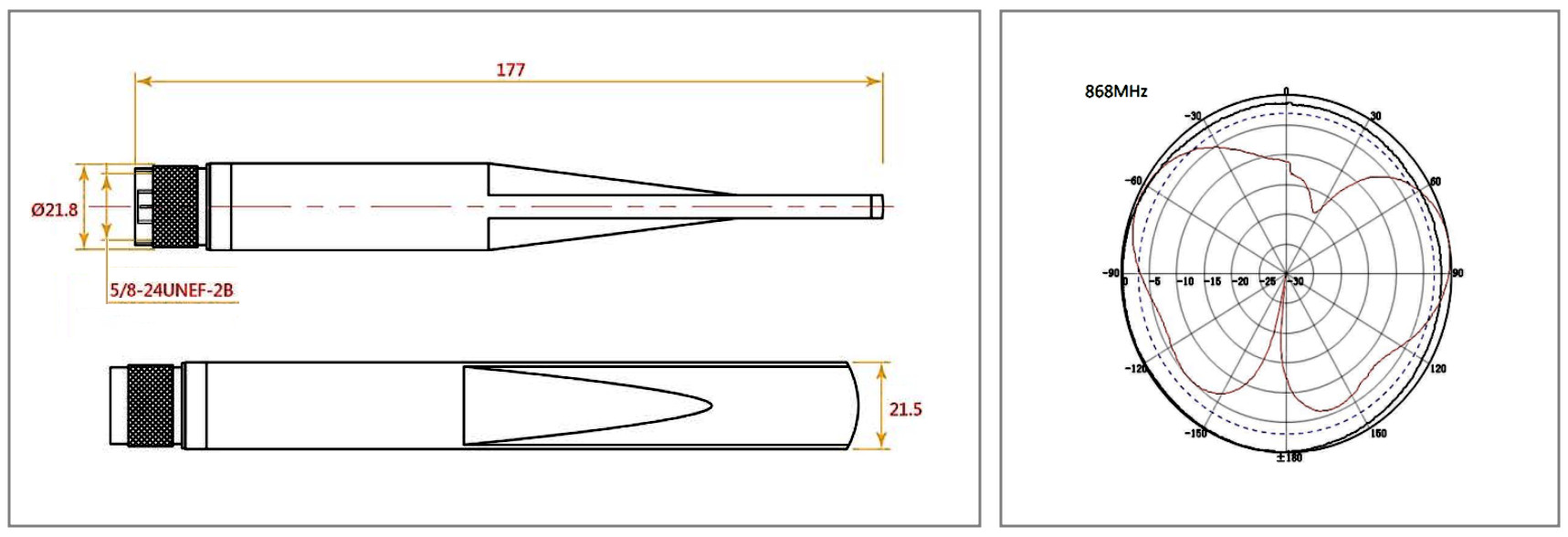

Ø22 x 180 mm
Gewicht
0.082 kg
Betriebstemperatur
-40 °C bis 85 °C
