Produktname

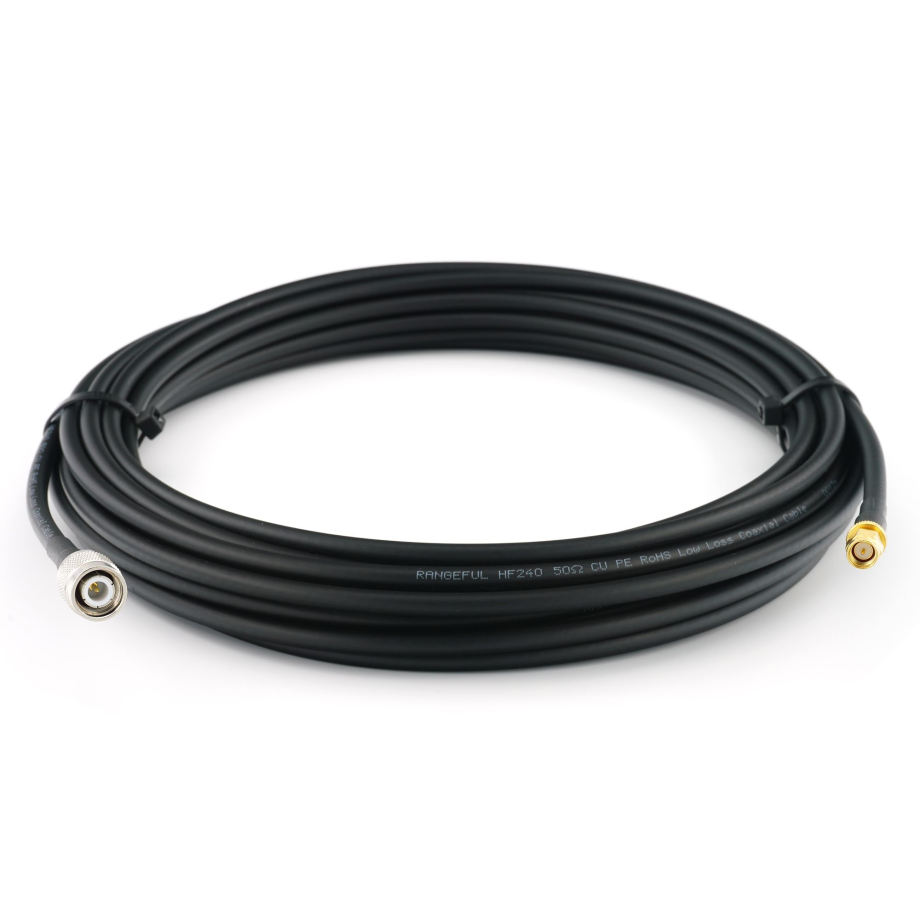

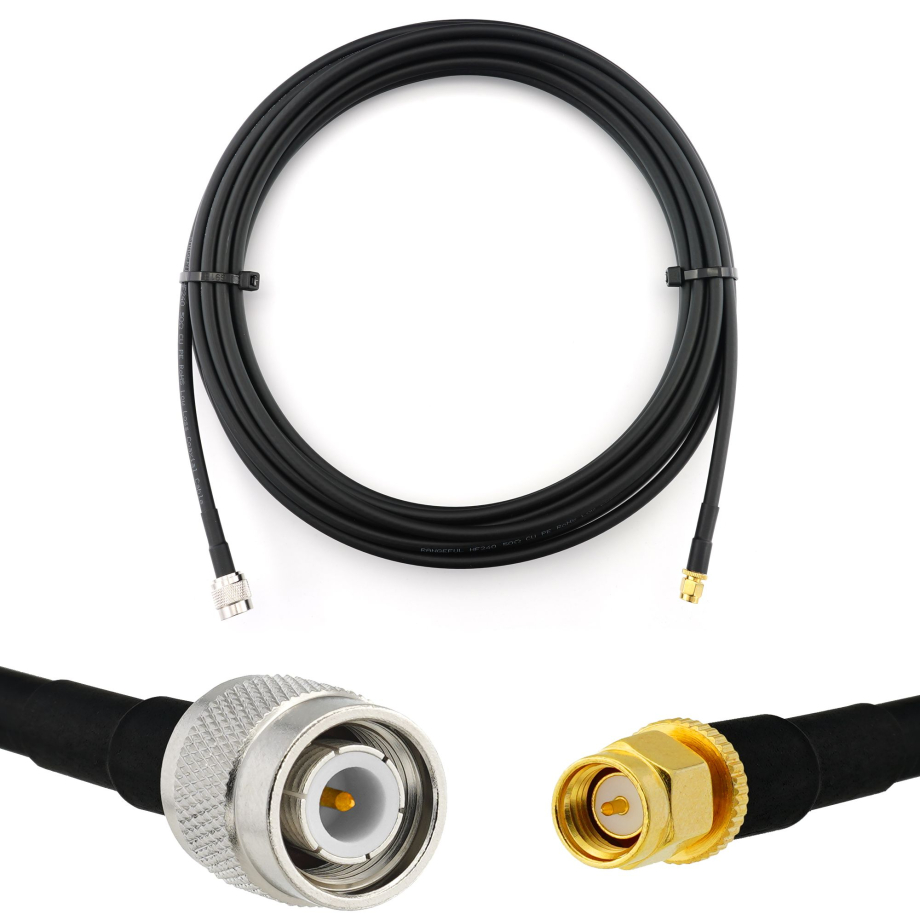

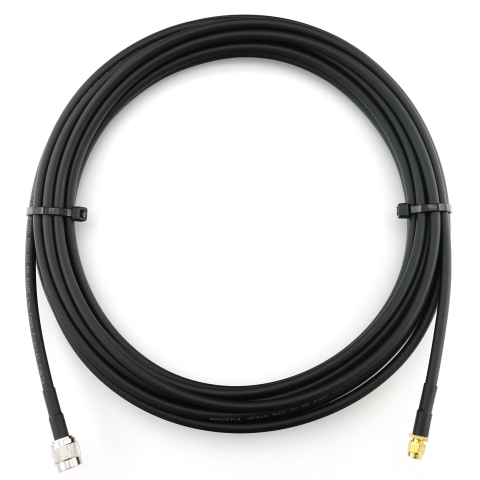

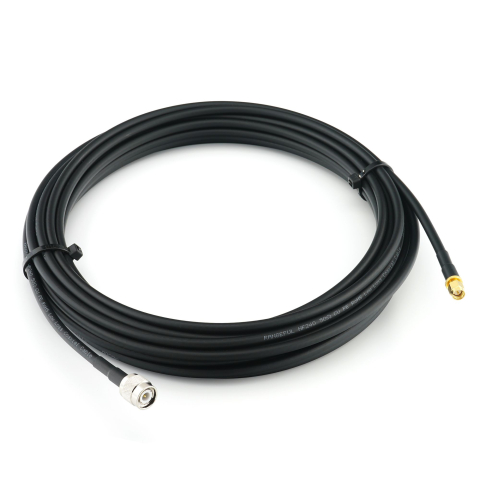

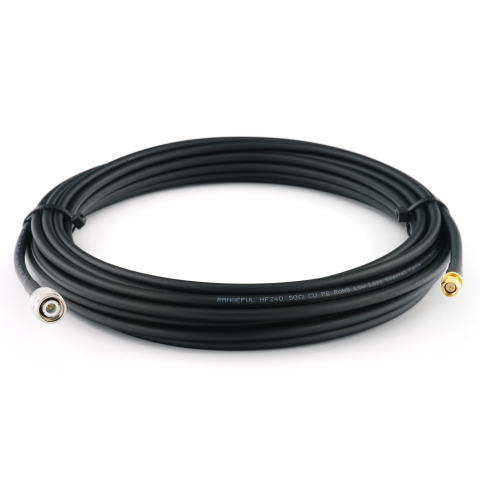

TNC Stecker auf SMA Stecker 20m Koaxialkabel — HF240 (entspricht LMR240)
Garantie
?
24 Monat
Herstellerteilenummer
HF240-TNCM-SM-20
TNC Stecker auf SMA Stecker 20m Koaxialkabel —
HF240 (entspricht LMR240)
Auf Lager
?
35.72 €
35.72 €
Detallierte Beschreibung
Spezifikationen
Kabel & Stecker
Kabeltyp
LMR240
Steckverbinder
TNC Male - SMA Male
Kabellänge
Leiter
Reinkupfer
Leiter-Durchmesser
Ø 1,40 mm
Dielektrikum
PEG
Dielektrikum Durchmesser
Ø 3,80 ± 0,10 mm
Abschirmung
Aluminium-Folie
Abmessungen der Abschirmung
Ø 3,90 ± 0,10 mm
Abdeckung der Abschirmung
100 %
Geflecht
Verzinntes Kupfer
Geflechtmaße
Ø 4,30 ± 0,10 mm
Geflechtabdeckung
77 %
Mantel
Nicht verschmutzendes PVC
Mantel-Durchmesser
Ø 6,10 ± 0,10 mm mm
Physical Parameters
Farbe
Schwarz
Maße
31 x 31 x 8 cm
Gewicht
3.16 kg
Betriebstemperatur
-30 °C bis 70 °C
Umwelt
Innen, Außen
Package Contains
Einheiten
1 Stck
