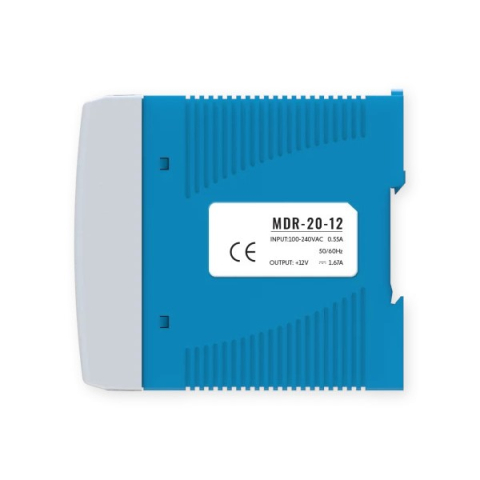

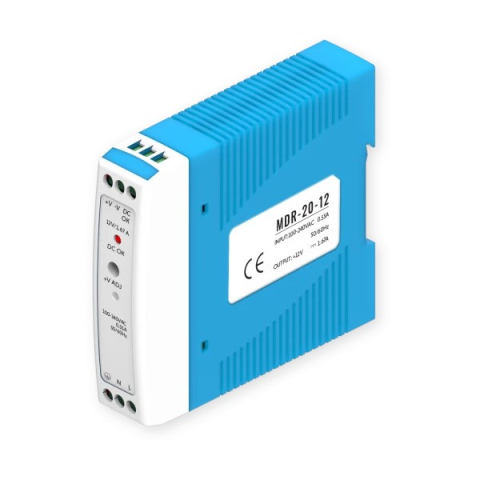

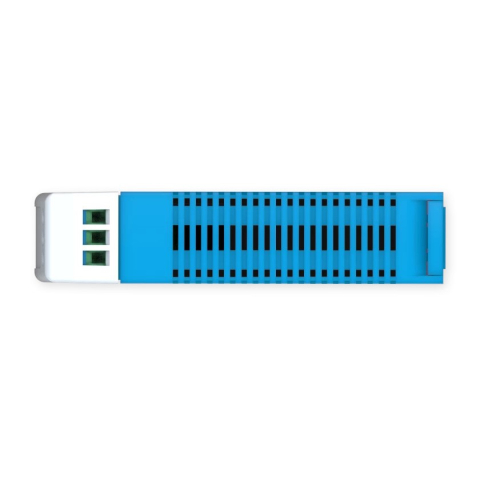

Teltonika MDR-20-12 Netzteil für DIN-Schiene 12V 20W
Official Teltonika Distributor
Certified Teltonika Engineers
Auf Lager
?
24.18 €
24.18 €
Official Teltonika Distributor
Certified Teltonika Engineers
Detallierte Beschreibung
PR3PDNP0 ist ein DIN-Schienen-Netzteil für Teltonika-Router. Liste der kompatiblen Geräte: RUT200, RUT241, RUT901, RUT951, RUT956, TCR100, RUT300, RUT360, RUTX08, RUTX09, RUTX10, RUTX11, RUTX12, RUTX14, RUTX50, RUTXR1, TRB140, TRB141, TRB142, TRB143, TRB145, TRB245, TRB255, TRB500, TSW010, TSW304.
Eigenschaften:
- Überlastschutz: 105 % ~ 160 %, Abschaltung des Ausgangs, automatische Wiederherstellung
- Einschaltstrom: Kaltstartstrom 20 A / 115 VAC; 40 A / 230 VAC
- Überspannungsschutz: 120 % ~ 140 %, Abschaltung der Ausgangsspannung, Wiederherstellung durch Aus-/Einschalten erforderlich
- Einschalt-, Anstiegs- und Überbrückungszeit: 500 ms; 30 ms / 230 VAC bei Volllast; 1000 ms; 30 ms / 115 VAC bei Volllast
- Spannungsfestigkeit: I/P-O/P: 1,5 kV; I/P-FG: 1,5 kV; O/P-FG: 0,5 kV für 1 Minute
- Isolationswiderstand: I/P-O/P, I/P-FG, O/P-FG: 500 VDC / 1000 MΩ
