Produktname

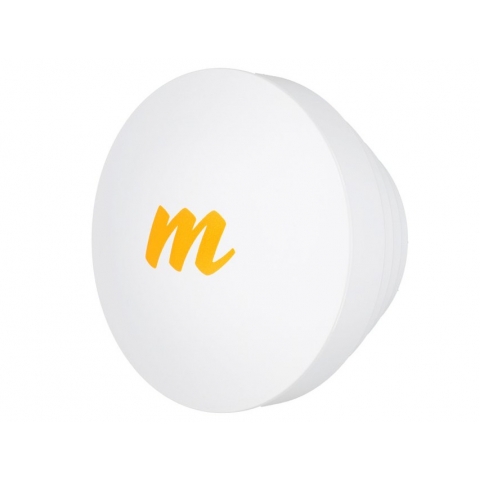

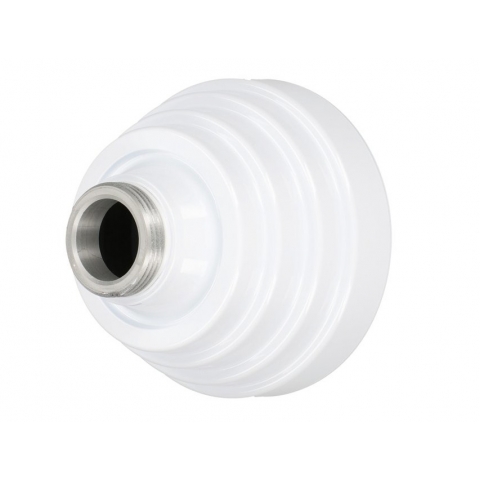

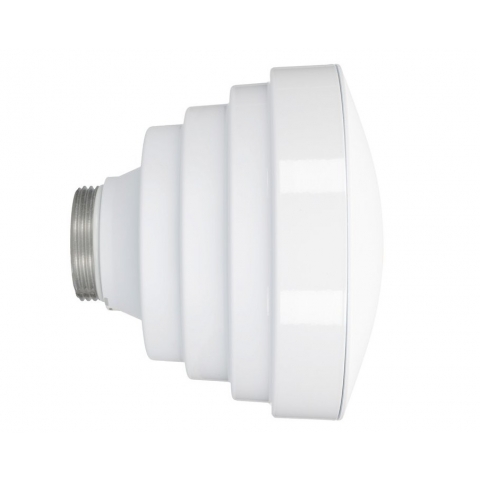

Mimosa N5-X16 Hornantenne 16dBi
Garantie
?
24 Monat
Herstellerteilenummer
100-00087
EAN
0708747437362
Mimosa N5-X16 16 dBi Hornantenne für C5x | 4900–6400 MHz
- 16 dBi Hornantenne mit symmetrischer Abstrahlung für Mimosa C5x Access Points – für gezielte Signalführung im Wireless-Einsatz.
- Für den erweiterten Frequenzbereich des C5x optimiert: Die modulare N5-X Antenne arbeitet im Bereich von 4900 bis 6400 MHz.
- Speziell für Mimosa C5x entwickelt, unterstützt das Horn-Design eine stabile, gerichtete Funkverbindung in professionellen Netzwerken.
- Modulare Custom-Antenne für den Einsatz mit Mimosa C5x Hardware – passend für professionelle WLAN-Installationen.
- Ideal für 5-GHz-Wireless-Setups, bei denen 16 dBi Gewinn und zuverlässige Richtwirkung gefragt sind.
-6% 24.04 €
22.57 €
nicht vorrätig
?
-6% 24.04 €
22.57 €
nicht vorrätig
?
Verfügbare Alternativen
Detallierte Beschreibung
Die kundenspezifische modulare N5-X-Antenne ist speziell für die erweiterte C5x-Frequenzunterstützung optimiert. Die Mimosa N5-X16 ist eine symmetrische Hornantenne mit 16 dBi Gewinn zur Verwendung mit Mimosa C5x Access Points, die im Frequenzbereich von 4900–6400 MHz betrieben werden.
Technische Daten
Spezifikationen
Antenne
Antennen Design
Horn
Wireless Antenna Frequenzbereich und Verstärkung
4.9 - 6.4 (GHz) 16 (dBi)
Strahlbreite
22 °
Polarisation
Dual Slant
F/B Verhältnis
> 50 dB
Anschlüsse
RF Steckverbinder
(1) Twist-on
Physical Parameters
Maße
Ø160 x 116 mm
Gewicht
0.61 kg
Umwelt
Außen
Eingeschätzte Windgeschwindigkeit
200 km/h
Package Contains
Einheiten
1 Stck
Antennenkuppel
Enthalten
