Herstellerteilenummer
HF240T-SM-SF-12
Garantie
?
24 Monat
EAN
4752284001520

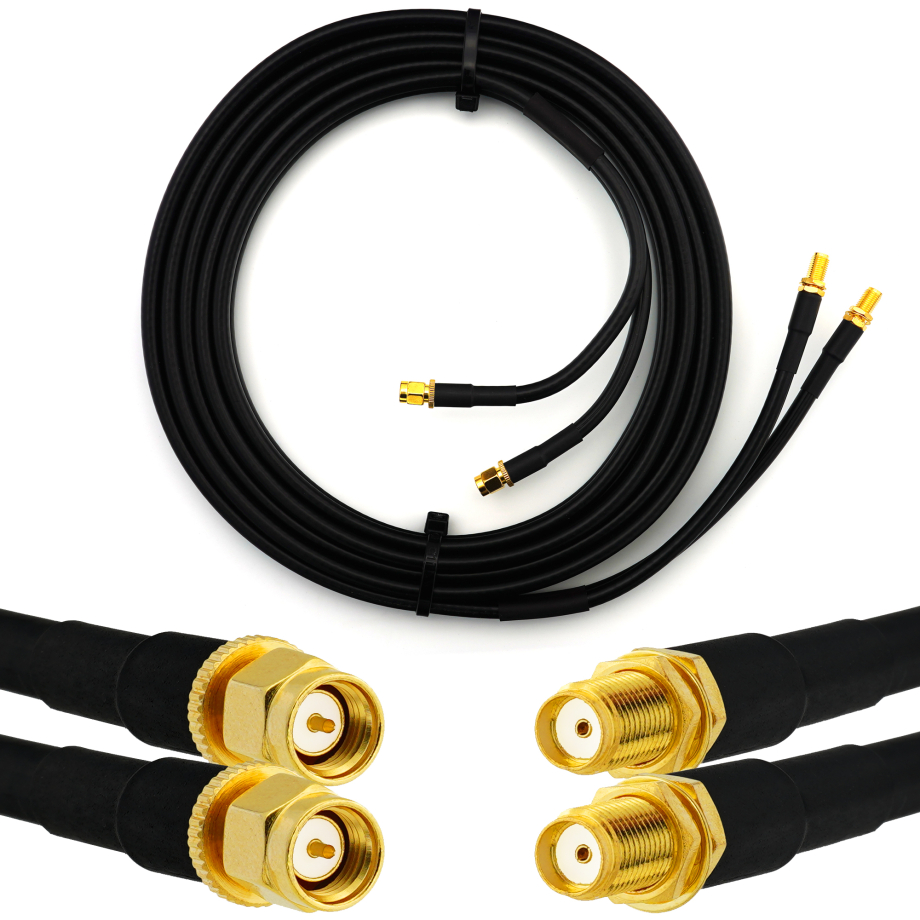

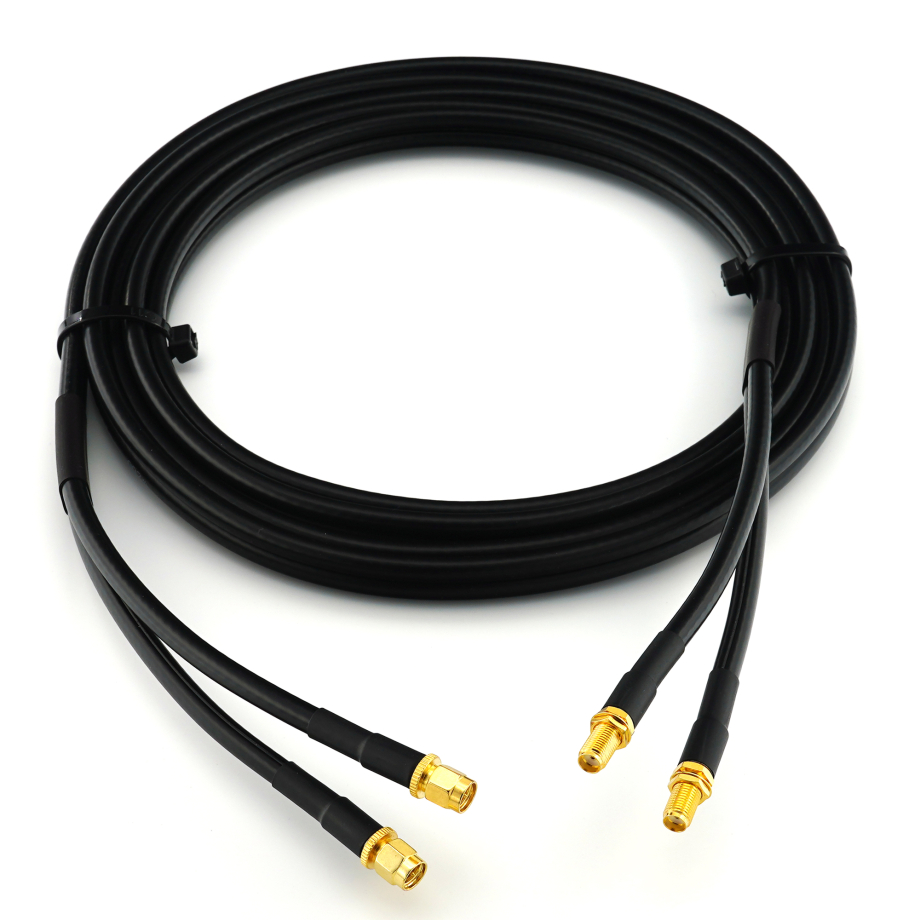

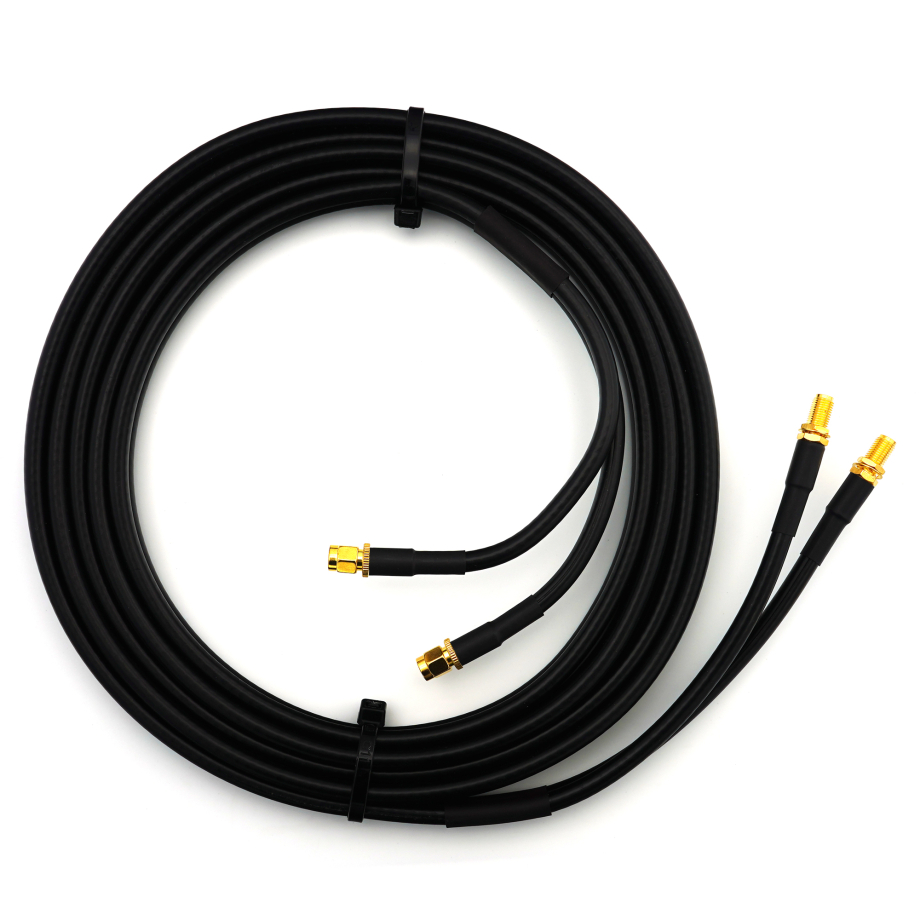

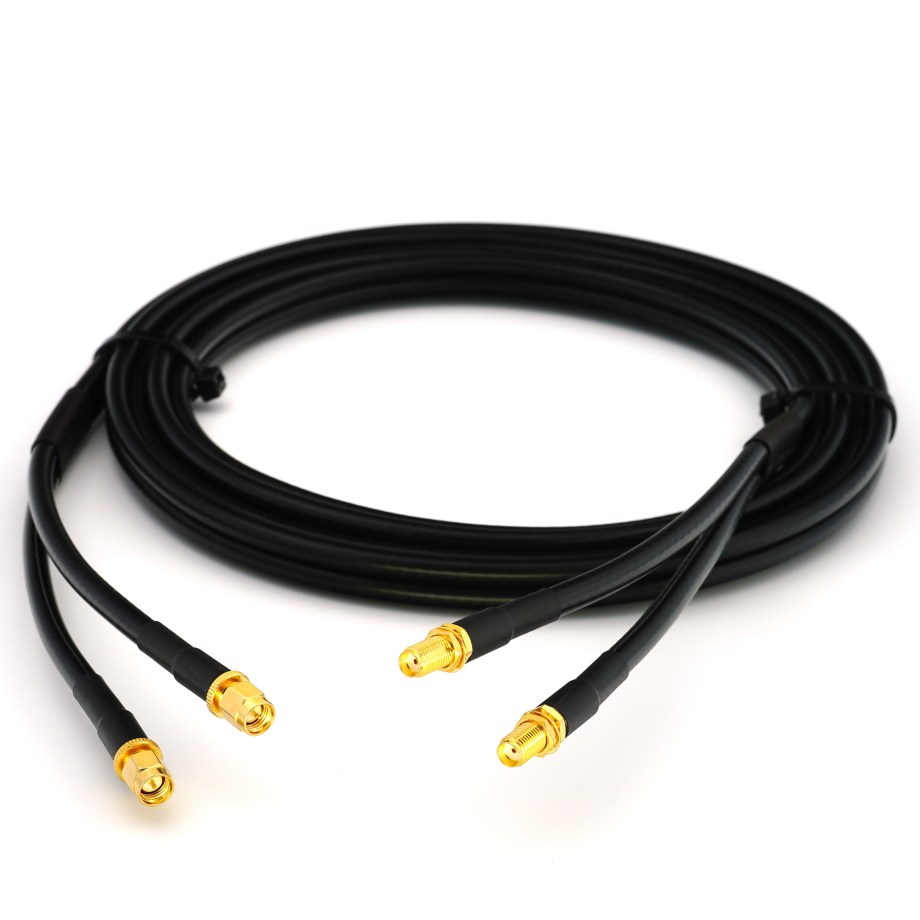

SMA Stecker auf SMA Buchse 12m Doppel-Koaxialkabel - HF240 (entspricht LMR240)
auf Lager
?
50.80 €
50.80 €
Spezifikationen
Kabel & Stecker
Steckverbinder
(2) SMA Male - (2) SMA Female
Kabeltyp
LMR240 Twin
Kabellänge
12 m
Leiter
Reinkupfer
Leiter-Durchmesser
Ø 1,40 mm
Dielektrikum
PEG
Dielektrikum Durchmesser
Ø 3,80 ± 0,10 mm
Abschirmung
Aluminium-Folie
Abmessungen der Abschirmung
Ø 3,90 ± 0,10 mm
Abdeckung der Abschirmung
100 %
Geflecht
Verzinntes Kupfer
Geflechtmaße
Ø 4,30 ± 0,10 mm
Geflechtabdeckung
77 %
Mantel
PVC
Mantel-Durchmesser
Ø 6,10 ± 0,10 mm mm
Physical Parameters
Farbe
Schwarz
Maße
19 x 19 x 5 cm
Betriebstemperatur
-30 °C bis 70 °C
Umwelt
Innen, Außen
Package Contains
Einheiten
1 Stck
