Herstellerteilenummer
HF240-BNCM-BNCF-0.5
Garantie
?
24 Monat
EAN
4752284000226

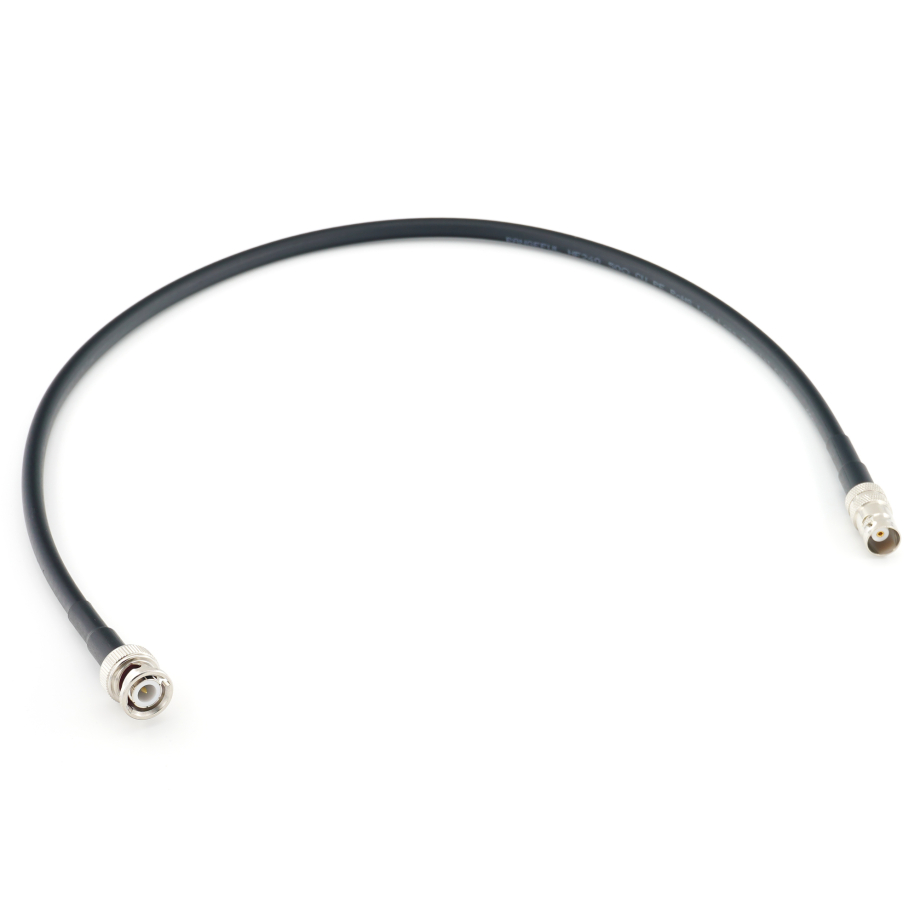

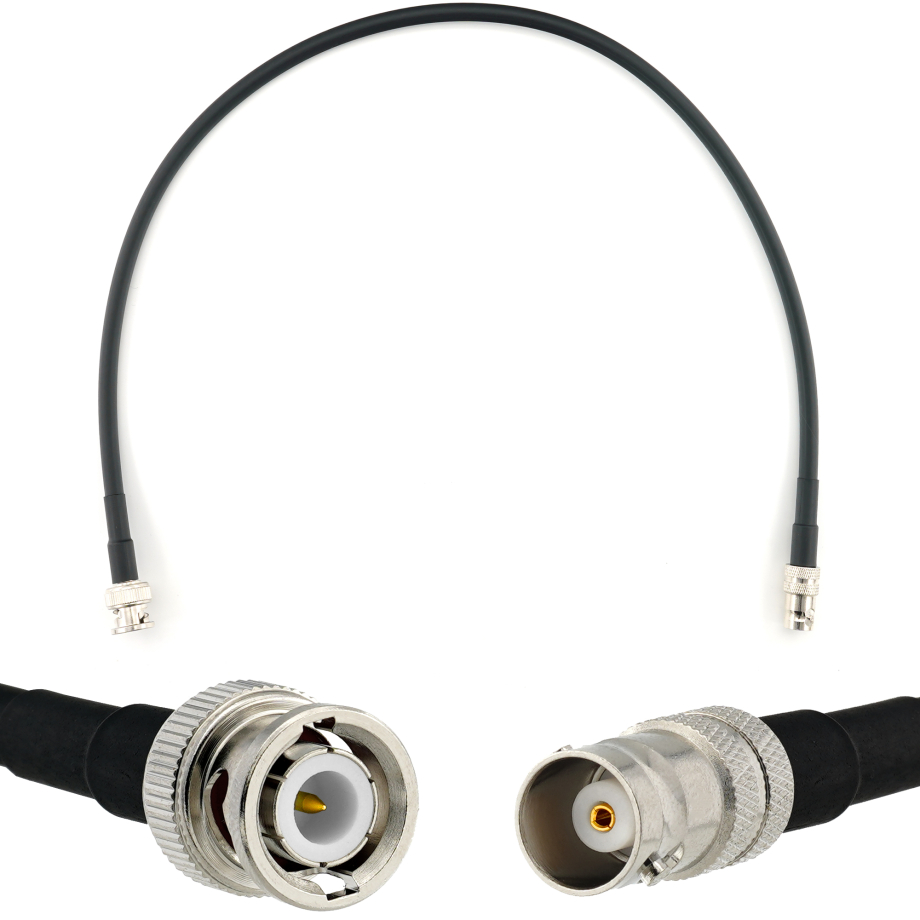

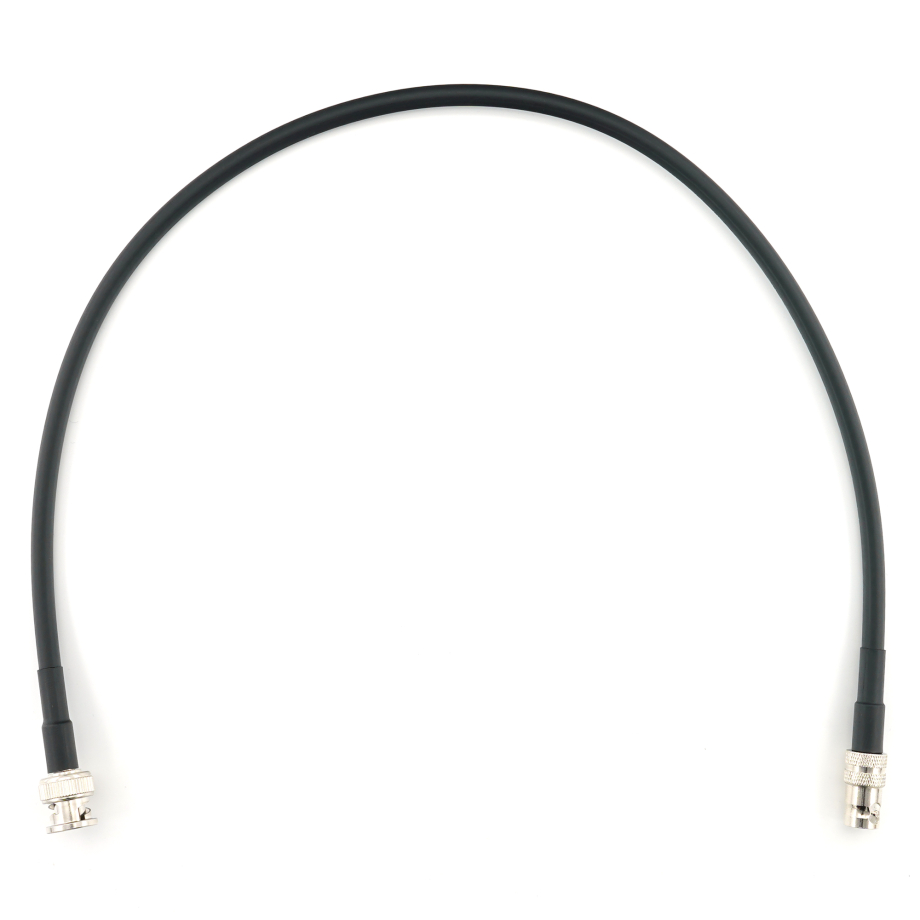

BNC Stecker auf BNC Buchse 50cm Koaxialkabel — HF240 (entspricht LMR240)
auf Lager
?
11.94 €
11.94 €
Detallierte Beschreibung
Spezifikationen
Kabel & Stecker
Kabeltyp
LMR240
Steckverbinder
BNC Male - BNC Female
Kabellänge
Leiter
Reinkupfer
Leiter-Durchmesser
Ø 1,40 mm
Dielektrikum
PEG
Dielektrikum Durchmesser
Ø 3,80 ± 0,10 mm
Abschirmung
Aluminium-Folie
Abmessungen der Abschirmung
Ø 3,90 ± 0,10 mm
Abdeckung der Abschirmung
100 %
Geflecht
Verzinntes Kupfer
Geflechtmaße
Ø 4,30 ± 0,10 mm
Geflechtabdeckung
77 %
Mantel
Nicht verschmutzendes PVC
Mantel-Durchmesser
Ø 6,10 ± 0,10 mm mm
Physical Parameters
Farbe
Schwarz
Maße
15 x 15 x 2 cm
Gewicht
0.1 kg
Betriebstemperatur
-30 °C bis 70 °C
Umwelt
Innen, Außen
Package Contains
Einheiten
1 Stck
